- CE
Paradigm
MultiFRAX
Portable dual-wavelength fractional laser
- 1550 nm and 1927 nm — separately or simultaneously
- Portable handpiece with battery pack
- CE cleared
Request a quote
- Training with every device
- Warranty & service
About

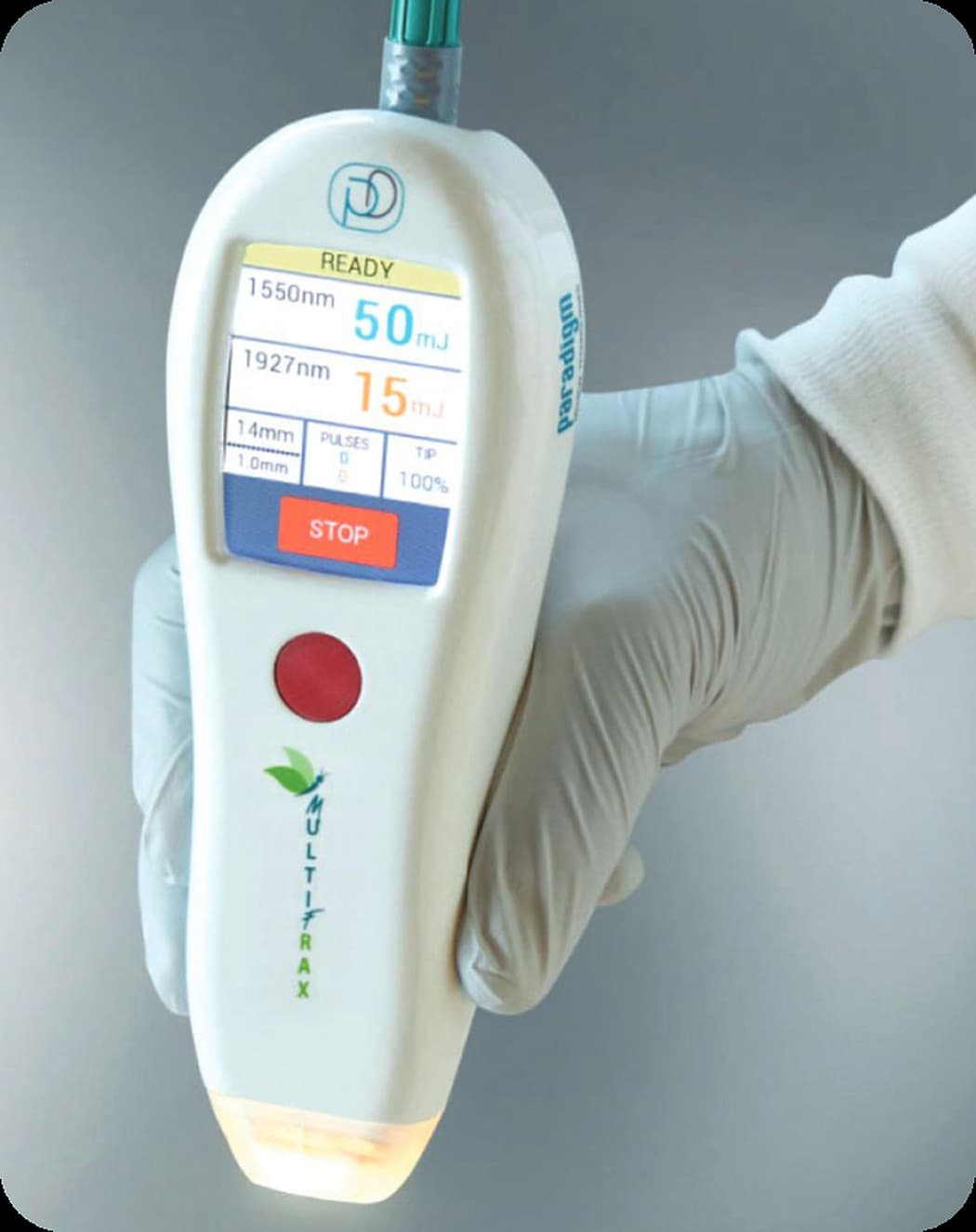

MultiFRAX is a portable, non-ablative fractional laser combining a 1550 nm and a 1927 nm wavelength in one handpiece. The two wavelengths can be used separately or at the same time, giving the practitioner control over treatment depth for scars, wrinkles, pigmentation and skin laxity.
Treatment possibilities
Indications from the manufacturer's documentation. Each links to the treatment page.
Recommendations
From physicians who use MultiFRAX in practice.
Dr. Tapan Patel
PHI Clinic, London
Scientific Research Team · United Kingdom
Dr. Tapan Patel explains why MultiFRAX has a place in the treatment room.
PHI Clinic, London
How to use
MultiFRAX in the treatment room, step by step.
- 01
Choose the wavelength mode
Select 1550 nm (non-ablative), 1927 nm (sub-ablative) or both at once — HybridFRAX — with independent energy control for each wavelength.
- 02
Set the spot size
Adjust the treatment width between 2 and 14 mm in 1 mm steps to match the area and the indication.
- 03
Set the spacing between microcolumns
Choose 0.5, 1.0, 1.5 or 2.0 mm. Tighter spacing gives higher density; wider spacing gives a lighter treatment.
- 04
Fit a single-use tip
Each treatment uses a fresh tip. The skin-contact sensor sits in the tip.
- 05
Read the Smart Sense feedback
The tip lights yellow when the device is ready, blue on proper skin contact and red if the handpiece moves too fast.
- 06
Treat in passes
The movement sensor triggers the laser as you move the handpiece across the area, at up to 2 cm/s.
How it works: dual wavelength beam, touchscreen, single-use tips · Paradigm
Detailed information
Technology, indications and specifications as documented by Paradigm.
- HybridFRAX
- Two diode wavelengths in one handpiece. 1550 nm works non-ablatively in the dermis; 1927 nm works sub-ablatively closer to the surface. Fired together, both skin layers are treated in a single pass.
- Portable by design
- A 330 g handpiece and a 350 g battery pack replace the cart. The battery is rechargeable and the device needs no cooling.
- Indications
- Atrophic and hypertrophic scars, wrinkles and expression lines, pigmentation and melasma (1927 nm), stretch marks, skin laxity, and overall texture and tone.
- Origin
- Developed by Nikolai Tankovich, MD PhD, a pioneer of dual-wavelength fractional lasers. Made in France.
- Laser type
- Diode, dual wavelength
- Wavelengths
- 1550 nm (non-ablative) · 1927 nm (sub-ablative) — separately or simultaneously (HybridFRAX)
- Energy
- 1–50 mJ (1550 nm) · 1–15 mJ (1927 nm)
- Spacing between microcolumns
- 0.5 · 1.0 · 1.5 · 2.0 mm
- Treatment width
- Variable 2–14 mm
- Processing speed
- Up to 2 cm/s
- Skin contact sensor
- Integrated in the tip (Smart Sense)
- Laser trigger
- Movement sensor
- User interface
- Touchscreen on the handpiece
- Handpiece
- 198 × 70 × 52 mm · 330 g
- Battery pack
- 125 × 86 × 34 mm · 350 g · Li-ion rechargeable, 16 V / 35 W
- Charging adapter
- 110–240 V, 1.5 A · 24 VDC, 2.7 A, 65 W
Talk to us
